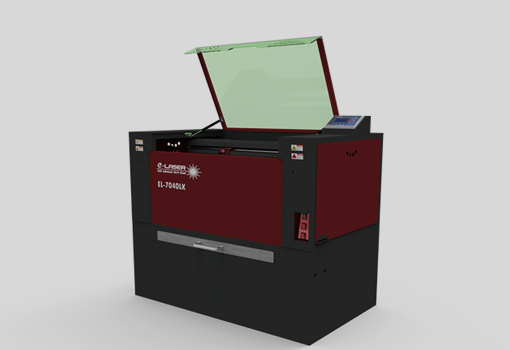

EL-7040LK

The EL-7040LK is the product of E-laser, which provides excellent marking and cutting capability. It is compact and has a compact machining area (700x400). It is equipped with auto focus function.
Marking and cutting of cylindrical material is possible (using index). Marking and cutting of non-metallic materials. It is a non-metal exclusive equipment that can mark metal material.

It adopts the patented W.A.B.E technology of E-laser (Option) and has ACS (Anti Corrosion System) structure. You can protect the equipment even in rough work.

The laser oscillator can be selected from 50W to 400W CO2 laser depending on the working purpose. Fiber laser oscillator is also available for metal processing.

All of our products can be customized according to your needs and work environment.

Quote Contact

Specification

Machining area700 X 400 mm
Maximum machining
speed
900mm/s
Resolution0.025mm
Repeatability0.01mm
CAM programE-Laser Cut 8.0
Data input methodUSB interface direct connection, USB memory
Supported computer
Operating system
Windows xp or later Windows10
Maximum cutting thickness
< 30 mm (acrylic) - Dependent on laser source power
Character processing
Minimum size
English: 1.5mm x 1.5mm /
Korean, Chinese: 3.5mm x 3.5mm
Laser
RF 20W ~ 400W Co2 Laser,
DC 50W ~ 120W Co2 Laser
Data Instruction Contents Dedicated language
Power supply
Single phase 100V 50 / 60Hz (exported to Japan) or
single phase 220V 60Hz 2200W (domestic type) or more
Drive systemStep motor or Servo motor

Function

Safety cover
Acrylic cover for hazard prevention during
processing
Precision motorHigh quality step or servo motor application
LCD Display
Convenient environment by changing job setting
and saving data
Multi language support
Support for multiple languages such as English,
Japanese, German, Chinese
Auto Focus Alignment
Fast and accurate focus alignment by moving the
Z-axis
ACS SystemAnti Corrosion System for pvc and pomax
Data input method USB interface direct connection, USB memory
Application of flame detection sensor (option)
Application of sensor to cut off laser when flame
occurs during processing
Application of W.A.B.E technology (option)
Applying technology to produce high-quality beam
with patented optical technology
kevler beltDurable belt application
Various lasers availableRF(20~200W) / DC(80~200W) / Fiber(20~200W)
Customizable
Remodeling and configuring of equipment
according to user's requirement
Warranty for 1 year Our standard warranty period

Video

Features of equipment

Apply safety cover

By attaching a safety cover to the front of the machining area, you can safely check the progress of the work.
Auto Focus alignment

The Z-axis automatically moves quickly and aligns the focus accurately, making it very convenient when working.
Application of high durability Kevler belt

Applied Kevlar belt, which is globally recognized.
High-quality and precise machining quality is realized by stable movement of the axis
ACS System Application

The Anti Corrosion System was developed by our company protects the main parts of the equipment, so it is possible to work on materials that have a long life of parts and generate harmful gas.

Option

W.A.B.E. Apply technology

Patented laser optics technology applied.
Significantly reduces beam size to ensure precise machining.
It can be selected as an option.
Vision DOMBO cutting

It is a device that can recognize the image through DOMBO mark by applying CCD camera and perform cutting work.
Optionally selectable
Select Work Table

Provides a basic aluminum blade.
Various tables according to customer's demand
1. Vacuum table
2. Honeycomb table
3. Aluminum blade
4. Acrylic honeycomb table
Selectable RF type CO2 Laser

Basically DC type glass tube is applied to CO2 laser.
RF type laser according to customer's demand.
It can be selected according to the laser output. 30W ~ 400W can be selected.
