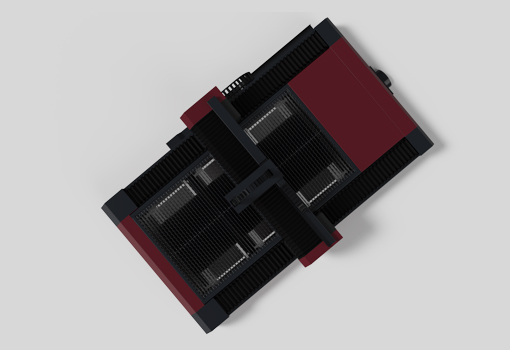

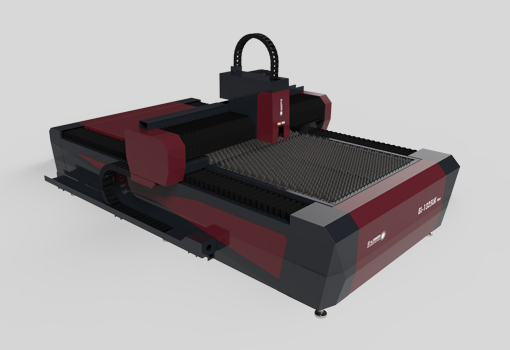

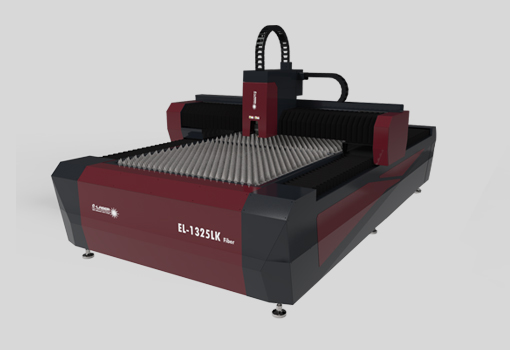

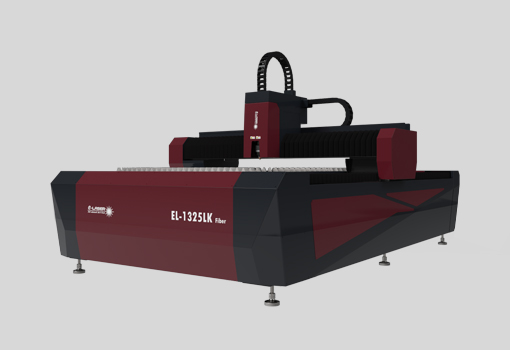

EL-1325LKM Fiber

EL-1325LKM is a machine made only for metal processing. It has a wide machining range (1300x2500) to meet customer's needs.
It is equipped with autofocus function that automatically moves the laser nozzle.
It is fast and precise with the basic servo motor and has accurate machining performance and durability by rack & pinion method. 4kW or more fiber laser can be installed, and it is possible to operate with high output. The laser life is 100,000 hours and is semi-permanent.

Fiber optic technology for metal processing is applied. Laser Gas Regulator controllable up to 30bar is applied for quick switching of cutting gas and accurate pressure control.
Laser oscillator can be applied up to 300W ~ 4KW according to work purpose and exchange table can be installed for work efficiency.

All of our products can be customized according to your needs and work environment.

Download Catalog

Quote Contact

Specification

Machining area1300 x 2500mm
Maximum transfer speed 120m/min
Maximum cutting speed60000mm/min
Position accuracy±0.1mm/3,000mm
Repeatability±0.03mm
CAM programcypcut(default), Lantek, actcut (option)
Data input methodUSB interface direct connection, USB memory
Supported computer
Operating system
Windows 7 or later Windows10
Laser1064nm, Fiber Laser
Drive systemRack&pinion+servo motor system(default)
Power supply3 phase 380V 60Hz

Cutting Capacity (mm)

Laser output	Mild steel	Stainless	Aluminium	Brass
700W	7.4	3	2	2
1KW	12	6	6	5
2KW	19.3	8	8.5	7
3KW	20	11.3	12	10.5
4KW	25	16	16	12

Video

Features of equipment

High rigidity frame

High rigidity frame application To Minimize vibration by applying high rigidity main frame.
After a heat treatment process of more than 3000 degrees to Minimized distortion.
Excellent cutting performance

It boasts superior cutting performance and cutting speed compared to CO2 laser.
Fiber laser has a lifetime of 100,000 hours.
Maintenance costs are also very low.
Highly reflective non-ferrous metal processing possible

The patented fiber laser technology cuts off the reflected light from the metal, so it can safely process the high-reflection metal that could not be processed by conventional fiber laser such as copper, aluminum, gold, silver and brass without damaging the laser.
Application of Laser Gas Regulator

It is possible to adjust the cutting gas pressure precisely by applying the special gas regulator and it is possible to control the pressure of oxygen, nitrogen, compressed air up to 30bar.

Option

Selectable Linear Motor System

By default, servo + Rack & pinion system is applied. Optional Linear Motor system is available.
The linear system can simplify the structure of the mechanism and enable more precise machining.
Variety of lasers available

You can apply various lasers according to work purpose, material characteristics, laser output, manufacturer, according to your desired configuration.
Dedicated controller and program selectable

You can choose various controllers and operating programs according to customer's needs.
All operating programs are made with Korean and easy to use.
Dedicated Selectable Fiber laser Head

Suitable laser head can be applied according to working purpose, material characteristics and laser output.
Dedicated laser head is an important part, so we will decide through consultation.
