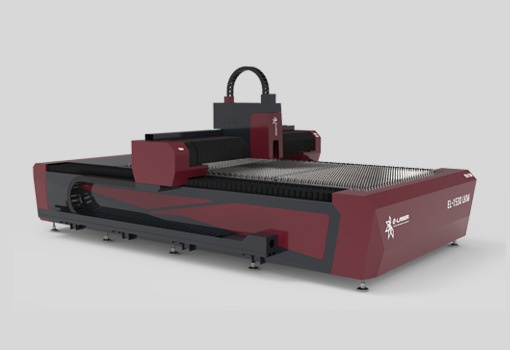

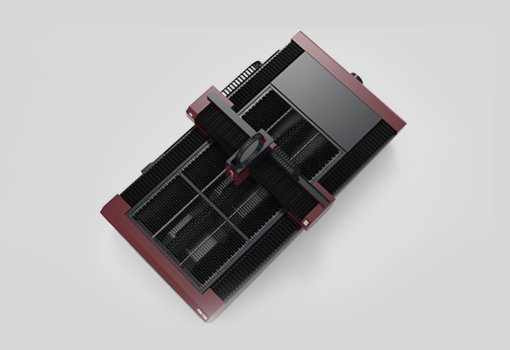

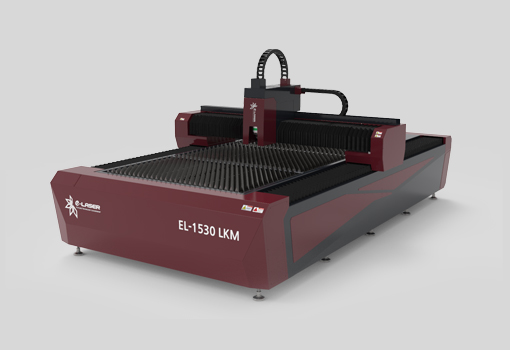

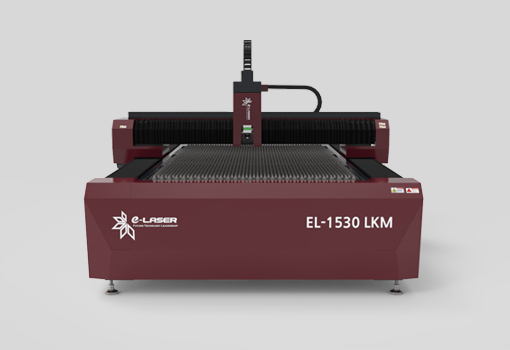

EL-1530LKM Fiber

EL-1530LKM is a machine made only for metal processing. It has a wide machining range (1500x3000) to meet customer's needs.
It is equipped with autofocus function that automatically moves the laser nozzle.It is fast and precise with the basic servo motor and has accurate machining performance and durability by rack & pinion method.
4KW or more fiber laser can be installed, and it is possible to operate with high output. The laser life is 100,000 hours and is semi-permanent.

Fiber optic technology for metal processing is applied. Laser Gas Regulator controllable up to 30bar is applied for quick switching of cutting gas and accurate pressure control.
Laser oscillator can be applied up to 300W ~ 4KW according to work purpose and exchange table can be installed for work efficiency.

All of our products can be customized according to your needs and work environment.

Download Catalog

Quote Contact

Specification

  • Machining area1500 x 3000mm
  • Maximum transfer speed120m/min
  • Maximum cutting speed60000mm/min
  • Position accuracy±0.1mm/3,000mm
  • Repeatability±0.03mm
  • CAM programcypcut(default), Lantek, actcut (option)
  • Data input methodUSB interface direct connection, USB memory
  • Supported computer
    Operating system

    Windows 7 or later Windows10

  • Laser1064nm, Fiber Laser
  • Drive systemRack&pinion+servo motor system(default)
  • Power supply3 phase 380V 60Hz

Cutting Capacity (mm)

Laser output Mild steel Stainless Aluminium Brass
700W 7.4 3 2 2
1KW 12 6 6 5
2KW 19.3 8 8.5 7
3KW 20 11.3 12 10.5
4KW 25 16 16 12

Video

Features of equipment

  • High rigidity frame

    High rigidity frame application To Minimize vibration by applying high rigidity main frame.
    After a heat treatment process of more than 3000 degrees to Minimized distortion.

  • Excellent cutting performance

    It boasts superior cutting performance and cutting speed compared to CO2 laser.
    Fiber laser has a lifetime of 100,000 hours.
    Maintenance costs are also very low.

  • Highly reflective non-ferrous metal processing possible

    The patented fiber laser technology cuts off the reflected light from the metal, so it can safely process the high-reflection metal that could not be processed by conventional fiber laser such as copper, aluminum, gold, silver and brass without damaging the laser.

  • Application of Laser Gas Regulator

    It is possible to adjust the cutting gas pressure precisely by applying the special gas regulator and it is possible to control the pressure of oxygen, nitrogen, compressed air up to 30bar.

Option

  • Selectable Linear Motor System

    By default, servo + Rack & pinion system is applied. Optional Linear Motor system is available.
    The linear system can simplify the structure of the mechanism and enable more precise machining.

  • Variety of lasers available

    You can apply various lasers according to work purpose, material characteristics, laser output, manufacturer, according to your desired configuration.

  • Dedicated controller and program selectable

    You can choose various controllers and operating programs according to customer's needs.
    All operating programs are made with Korean and easy to use.

  • Dedicated Selectable Fiber laser Head

    Suitable laser head can be applied according to working purpose, material characteristics and laser output.
    Dedicated laser head is an important part, so we will decide through consultation.

Material processing samples

  • Metal

  • Non-Metal
