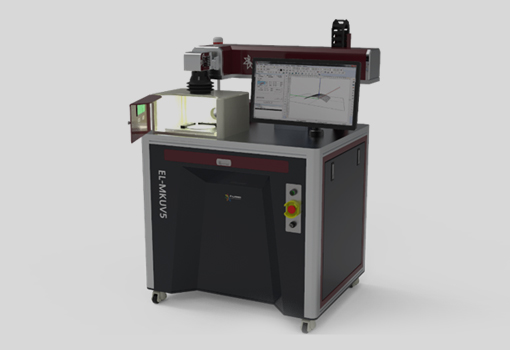

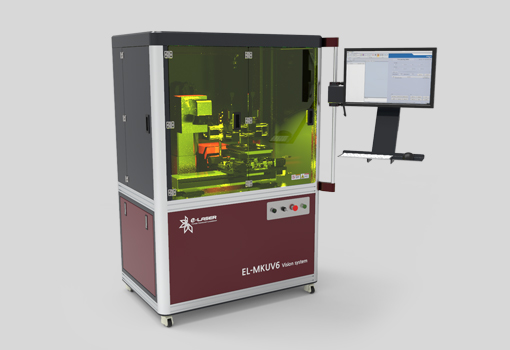

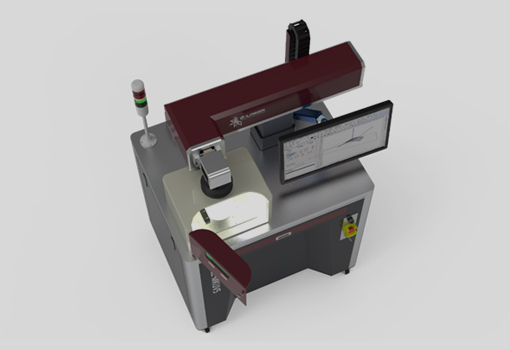

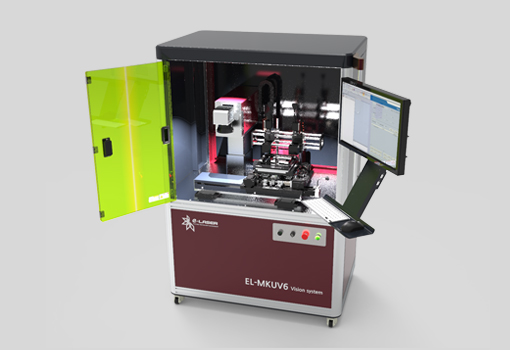

Laser Scriber (UV) Custom Order Product

With the increasing demand for laser marking, E-laser marking machines are constantly evolving to meet customers' needs. Our equipment with UV laser.

In order to identify SiC single crystal substrate with 4 ~ 6 inch Lot No. Marking can be done by default.

Various text, pattren, and photographs can be marked on metal and non-metal materials.

It has a processing range of 200x200mm and can be used for general marking as well as substrate marking. It is also a compact design that makes it easy to move and adds functionality with a user-friendly design.

All of our products can be customized according to your needs and work environment.

Quote Contact


  • Processing range205 * 205mm
  • Laser typeNd: YVO4 UV Laser (355nm)
  • Laser wavelength25ns @ 100KHz
  • Laser output6W @ 50kHz
  • Cooling methodAir cooling type
  • Supported computer Operating system

    Window XP or later Window 10

  • CAM programOur development program
  • Input Voltage220 V Single Phase 60Hz
